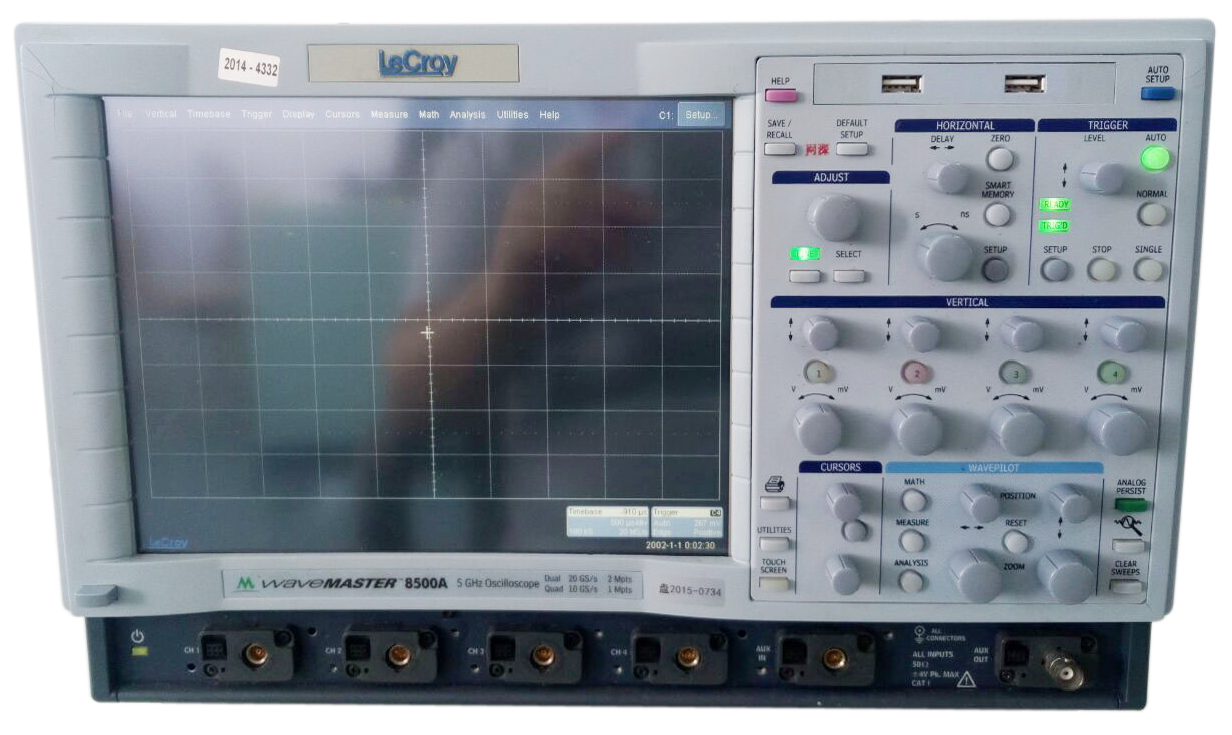

力科LeCroy 8500A 5GHz 帶寬示波器

WaveMaster 8500A XXL

4 Ch 5 GHz DSO; 10 GS/s 50 Mpts /Ch; 20 GS/s 100 Mpts using 2 or 1 Ch

It&＃39;s All About Performance

The LeCroy WaveMaster 8000A Series oscilloscope offers a unique combination of high bandwidth, fast sampling speeds, and long memory capture, ideal for digital and communications systems. Equipped with our patented X-Stream technology, its fast data transfer and processing system deliver unprecedented measurement capabilities, at speeds 10-100 times faster than conventional oscilloscopes. Providing true WaveShape Analysis, its high-performance capabilities are changing the way engineers think about design and testing.

Features:

High bandwidth from 4 GHz to 6 GHz

Fast sampling speeds-to 20 GS/s on 4 channels

Full sampling speed maintained over entire memory length

Standard memory 10 Mpts/Ch

High signal integrity with an SiGe amplifier, ADC, and trigger circuit

Intuitive GUI for easier WaveShape Analysis

10-100 times faster processing speeds

A wide array of standard math tools

Optional math and measurement packages

Measurement Accuracy

Superior timebase performance and very low jitter noise floor make WaveMaster a truly remarkable instrument. Delivering extremely stable and precise measurements, its high level of accuracy includes:

1 ps rms jitter noise floor

Timebase stability of ±1 ppm clock accuracy aging < 1 ppm/year clock accuracy

Low trigger jitter < 2.5 ps

Rise time as fast as 75 ps captures fast signal edges
