概述

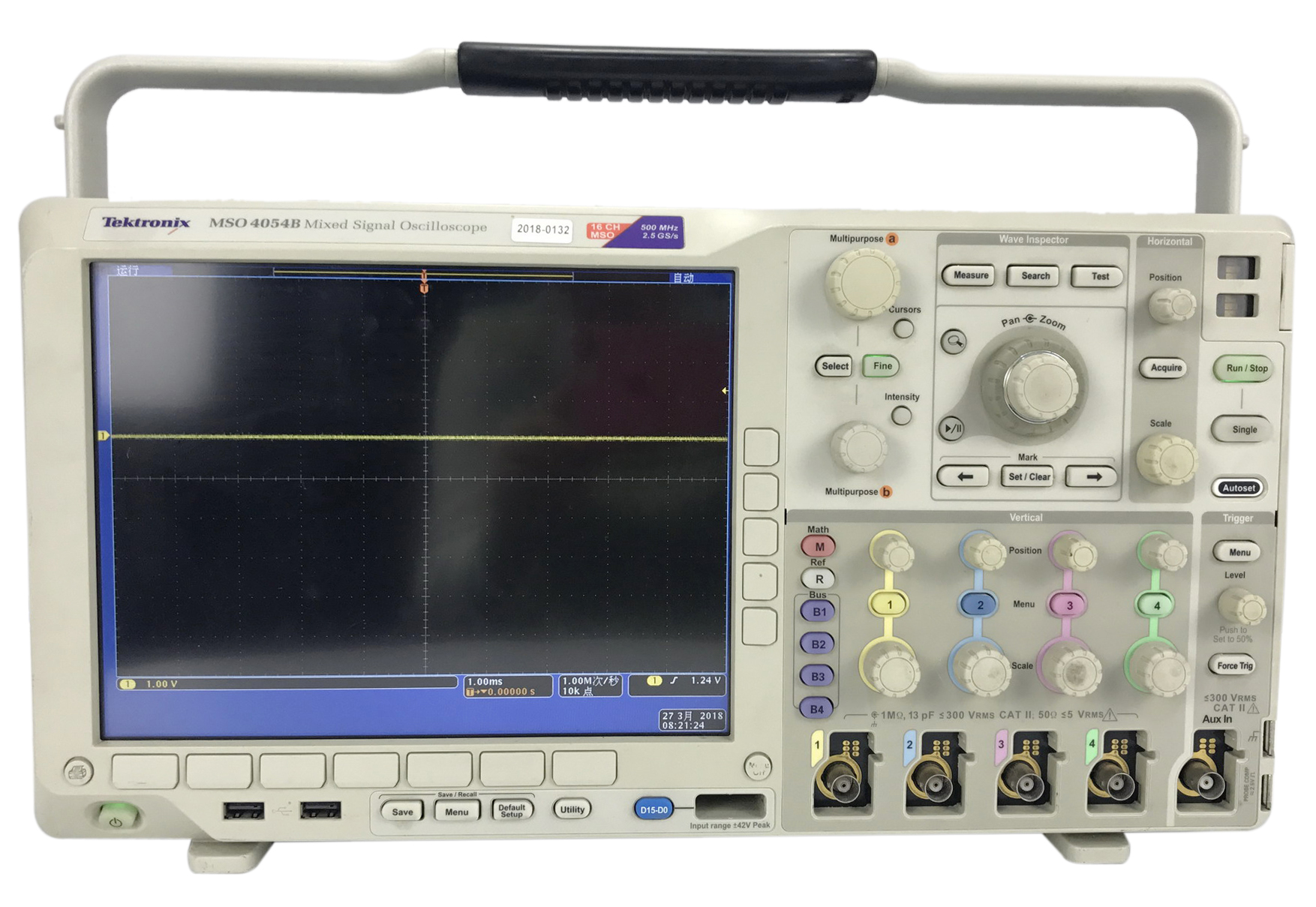

With the MSO/DPO4000B Mixed Signal Oscilloscope Series, you can analyze up to 20 analog and digital signals with a single instrument to quickly find and diagnose problems in complex designs. Bandwidths up to 1 GHz and up to 5X oversampling on all channels ensure you have the performance you need to see fast-changing signal details. To capture long windows of signal activity while maintaining fine timing resolution, the MSO/DPO4000B Series offers deep record length of up to 20M points standard on all channels. And with Wave Inspector? controls for rapid waveform navigation, automated serial and parallel bus analysis, limit and mask testing, and automated power analysis – your Tektronix oscilloscope provides the feature-rich tools you need to simplify and speed debug of your complex design.

Key performance specifications

• 1 GHz, 500 MHz, 350 MHz, and 100 MHz bandwidth models

• 2 and 4 analog channel models

• Up to 5 GS/s sample rate on all channels

• Up to 20 M record length on all channels

• >340,000 wfm/s maximum waveform capture rate

• Standard passive voltage probes with 3.9 pF capacitive loading and 500 MHz or 1 GHz analog bandwidth

• Suite of advanced triggers

Key features

• Wave Inspector? controls provide easy navigation and automated search of waveform data

• 42 automated measurements, and FFT analysis for simplified waveform analysis

• 16 digital channels (MSO series)

• Mixed signal design and analysis (MSO series)

• Automated triggering, decode, and search on parallel buses

• Per-channel threshold settings

• Multichannel setup and hold triggering

• MagniVu? High-speed acquisition provides 60.6 ps fine timing resolution on digital channels

• Optional serial triggering and analysis - automated serial triggering, decode, and search options for I2C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I2S/LJ/RJ/TDM

• TekVPI? probe interface supports active, differential, and current probes for automatic scaling and units

• 10.4 in. (264 mm) bright XGA color display

• Small footprint and lightweight – Only 5.8 in. (147 mm) deep and 11 lb. (5 kg)

Connectivity

• Two USB 2.0 host ports on the front panel and two on the rear panel for quick and easy data storage and connecting a USB keyboard

• USB 2.0 device port on the rear panel for easy connection to a PC or direct printing to a PictBridge?-compatible printer

• Integrated 10/100/1000BASE-T Ethernet port for network connection and video out port to export the oscilloscope display to a monitor or projector

Optional application support

• Power analysis

• Limit and mask testing

• HDTV and custom video analysis

Model overview

download: MSO4000B DPO4000B技術(shù)資料
