概述

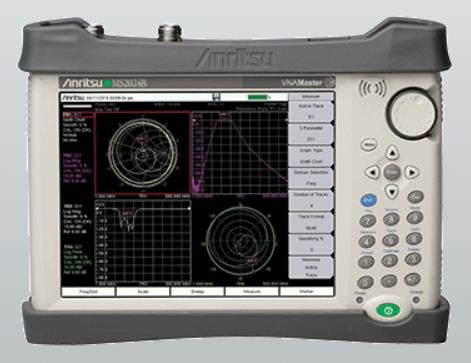

VNA Master MS2024A is a handheld Vector Network Analyzer designed to make accurate vector corrected 1-port magnitude, phase, and Distance-To-Fault measurements and 1-path 2-port magnitude and phase measurements from 2 MHz to 4 GHz.

For field engineers and technicians supporting aerospace & defense platforms, commercial wireless backhaul, and other general purpose applications, the VNA Master are the first and only truly portable handheld 2-port Vector Network Analyzers (MS2024A/26A) offering 2 MHz to 6 GHz frequency coverage for precisely detecting faults in RF cables, connectors, and antennas anytime, anywhere.

VNA Master is also an excellent solution for low-cost manufacturing and other general purpose applications given the broad frequency coverage, excellent performance, and integrated capabilities.

特征

• Vector Network Analysis from 2 MHz to 4 GHz

• Vector Voltmeter replacement

• 2 ms/data points sweep speed

• USB/Ethernet for data transfer

• Store 1000 traces and setups in internal memory

• Memory card slot for data storage and transfer

• High resolution daylight viewable TFT color display

• Built-in and custom editable Cable and Signal Standard List

• Local Languages: English, Spanish, Italian, French, German, Japanese, Korean, and Chinese.

• Automate repetitive tasks with remote programming via Ethernet connector

• Weight < 6.4 lbs (2.9 kg)

• Master Software Tools for trace analysis, editing, reporting, and much more

download: MS2024A技術(shù)資料
