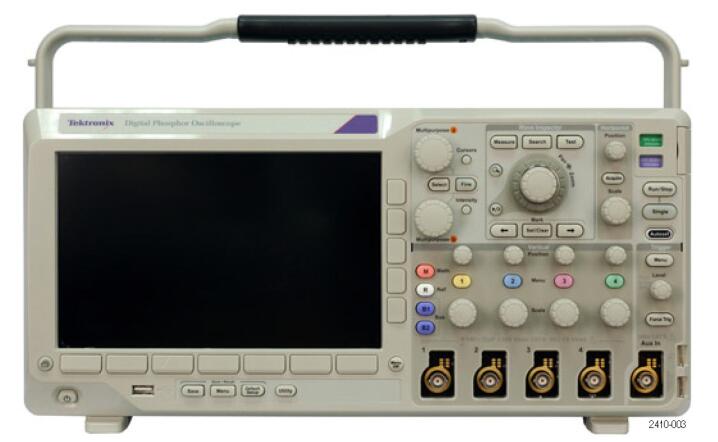

Tektronix DPO3034 數字熒光示波器
With the MSO/DPO3000 mixed signal oscilloscope series, you can analyze up to 20 analog and digital signals with a single instrument to quickly find and diagnose problems in complex designs. Bandwidths up to 500 MHz and a minimum of 5x oversampling on all channels ensure you have the performance you need for many of today's mainstream applications. To capture long windows of signal activity while maintaining fine timing resolution, the MSO/DPO3000 offers a deep record length of 5 M points standard on all channels.
500, 300, 100 MHz bandwidth models
Bandwidth is upgradable (up to 500 MHz)
2 and 4 analog channel models
2.5 GS/s sample rate on all channels
5 mega-point record length on all channels
>50,000 wfm/s maximum waveform capture rate
Suite of advanced triggers
Wave Inspector? Controls provide easy navigation and automated search of waveform data
29 automated measurements, and FFT analysis for simplified waveform analysis
16 digital channels (MSO series)
Mixed signal design and analysis (MSO series)
Automated triggering, decode, and search on parallel buses
Multichannel setup and hold triggering
MagniVu? high-speed acquisition provides 121.2 ps fine timing resolution on digital channels
Optional serial triggering and analysis - automated serial triggering, decode, and search options for I2C, SPI, CAN, LIN, RS-232/422/485/UART, and I2S/LJ/RJ/TDM
TekVPI? probe interface supports active, differential, and current probes for automatic scaling and units
9 in. (229 mm) WVGA widescreen color display
Small footprint and lightweight – Only 5.8 in. (147 mm) deep and 9 lb. (4 kg)
USB 2.0 host port on both the front panel and rear panel for quick and easy data storage, printing, and connecting a USB keyboard
USB 2.0 device port on the rear panel for easy connection to a PC or direct printing to a PictBridge?-compatible printer
Integrated 10/100 Ethernet port for network connection and video out port to export the oscilloscope display to a monitor or projector
Power analysis
HDTV and custom video analysis
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
| MSO3012 and DPO3012 | MSO3014 and DPO3014 | MSO3032 and DPO3032 | MSO3034 and DPO3034 | DPO3052 | MSO3054 and DPO3054 | |
|---|---|---|---|---|---|---|
| Analog channels | 2 | 4 | 2 | 4 | 2 | 4 |
| Analog bandwidth (-3dB) | 100 MHz | 100 MHz | 300 MHz | 300 MHz | 500 MHz | 500 MHz |
| Calculated rise time at 5 mv/div, typical | 3.5 ns | 3.5 ns | 1.17 ns | 1.17 ns | 700 ps | 700 ps |
| Sample rate (analog channels) | 2.5 GS/s | 2.5 GS/s | 2.5 GS/s | 2.5 GS/s | 2.5 GS/s | 2.5 GS/s |
| Record length | 5 M points | 5 M points | 5 M points | 5 M points | 5 M points | 5 M points |
| Digital channels | MSO models add 16 digital channels to the corresponding DPO model | |||||
