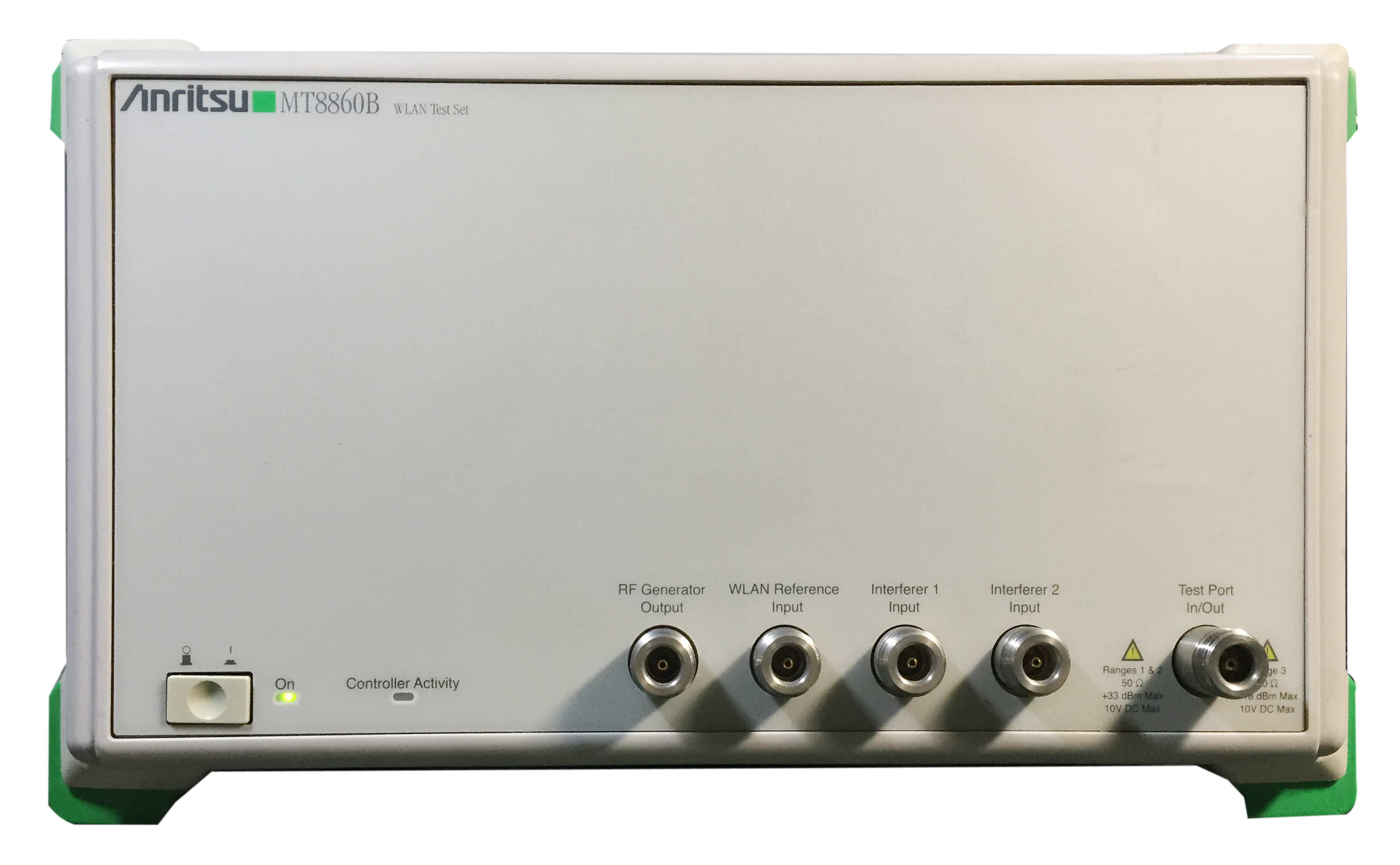

產品名稱：MT8860B  WLAN  wifi 無線綜合測試儀

OPT 11  Memory expansion for future software exhancement,supplied as standard.(memory expansion為將來升級軟件提供可能性),

 OPT 13  802.11g  Transimitter and receiver measurement suit with EVM.  (IEEE802.11g-2003),

安立的MT8860B是市場上僅有的能夠通過網絡模式或者直接模式進行802.11設備測試的一體化綜合測試儀.

Anritsu公司日前推出了MT8860B WLAN測試設備，適用于802.11b/g器件的無線層測試。該產品集成了測試設備，可為正常工作條件下的測試設備模擬WLAN接入點，而無需專門的測試模擬軟件。

MT8860B可測量所有主要的無線參數，包括：發送功率、頻譜屏蔽、EVM及接收機靈敏度，降低了測試時間，且僅需要進行唯一的連接即可實現所有的測試。該產品提供了分組環回功能的WLAN測試設備，從而簡化了DUT發送測試，適用于芯片組、模塊設計的驗證及智能電話、PDA、PC等消費電子產品的芯片組的測試。

The Anritsu MT8860B is the only WLAN Test Set with Network and Direct modes for testing WLAN devices conforming to IEEE 802.11 standards.

The MT8860B is an integrated one-box test set dedicated to testing 802.11 WLAN devices. It provides a high-speed measurement solution that is suitable for both production testing and design proving.

The MT8860B has two modes of operation: Network and Direct. The "Network" mode uses standard WLAN signaling and can be used for testing both the transmitter and receiver of DUTs. In "Direct" mode, the MT8860B tests DUT receivers by generating and transmitting WLAN packets, and tests DUT transmitters with its built-in transmitter analyzer. In Direct mode, the DUT must be controlled by the test mode software utility from the silicon supplier. The user interface is implemented through the supplied LANLook software package. LANLook runs on a standard PC and uses a conventional Windows?, based interface for both instrument configuration and results displays in clear numerical and graphical formats. LANLook communicates with the MT8860B through a GPIB interface
